Other fittings

This category includes individual and functional hardware solutions:

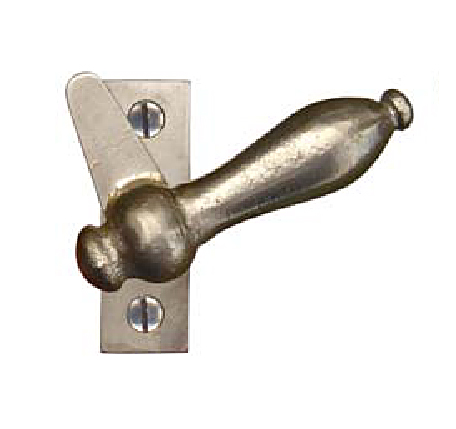

Bolt, window bolt, drop bolt, also known as swing door fittings, espagnolette, window crutches, chain, window setting rods, sliding door shells, bell buttons and plates, window stops, window couplings, toilet locks and window knobs.

Examples Other Historical Fittings


Bolt
We also manufacture surface-mounted door bolts and drop bolts in other shapes. Edge bolts of all lengths can also be supplied.

Latches and window bolts as well as deadbolts
Spacers can be supplied for espagnolettes and window bolts to bridge any gaps. Latches can also be supplied with different distances between the tongue and the base plate. When ordering, please specify whether the tongue should point at a right angle to the left or right or in the direction of the handle axis. Latches and window bolts can also be supplied as window handles or half handles, i.e. with a rosette.

Chain hooks, storm hooks
For chain hooks and storm hooks, please specify whether they should be fitted with a ring screw for fastening or whether, as in the past, cramps should be used.

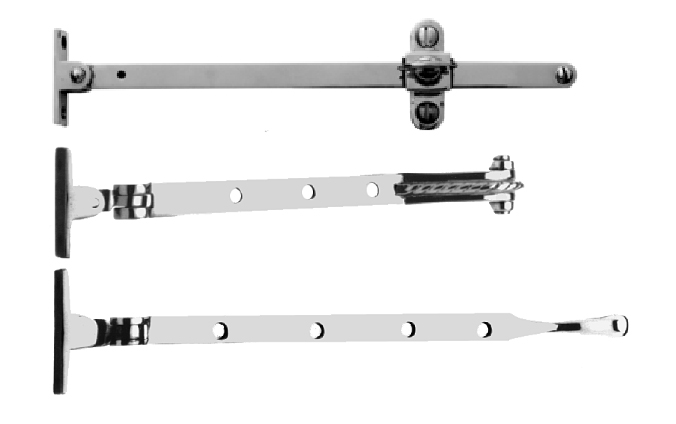

Window adjustment rods and skylight openers
Window adjustment rods and skylight openers are used to fix outward-opening skylights.

Fittings for skylights: skylight catches, skylight stays, stick hooks
Window stays and catches serve to secure inward-opening windows.

Doorbell buttons, door intercoms, sliding door shells
Sliding door shells with or without keyholes are available in a wide range of sizes, and for older doors they can also be customised to the specified dimensions. For bell buttons, you can use not only those shown, but any door or window rosette. Bell plates can be manufactured in any size according to your specifications, with an intercom system and letterbox slot.

Special fittings: window knobs, window holders, window couplings, WC locks
Window stays and couplers for inward-opening box windows prevent the fittings of the outer sash from hitting the glass surface of the inner sash. We manufacture toilet locks in modern designs or to match old models. We manufacture window knobs for pulling or pressing the sashes according to any model, but also supply the ones shown here from stock.


Table: Window fittings surfaces | abbreviations used

Msp: Polished brass
Msa: Antique brass
Mss: Brass with black powder coating
MsNi: Nickel-plated brass, shiny surface
MsNim: Brass matt nickel-plated
Fe: Eisen's raw
Fea: Old iron, also with waxed surface, oil burned in
Fes: Iron, black powder-coated
FeZn: Hot-dip galvanised iron
FeZi: Requirements galvanised
FeZis Black galvanised iron
The available materials and surface treatments for the fittings can be seen from the abbreviations in the above table (drop-down button).
